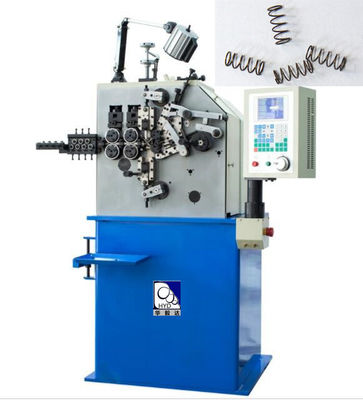

High-Precision 0.2-1.2mm CNC Spring Machine with 2 Axes Servo Motors and 1000m/min Max Wire Speed

उत्पाद विवरण:

उत्पत्ति के प्लेस:	ग्वांगडोंग, चीन
ब्रांड नाम:	HYD

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

मशीन वजन:	400 किलोग्राम	वोल्टेज:	380 वी
शक्ति:	2 किलोवाट	तार का आकार:	0.2-1.2 मिमी
सर्वो मोटर्स:	2 अक्ष	मैक्स वायर स्पीड:	1000 मीटर/मिनट
अधिकतम तार फ़ीड:	असीमित	व्यास के बाहर अधिकतम:	30 मिमी
वायर फीड मोटर:	1.2 किलोवाट	कैम मोटर:	1.0 किलोवाट
बिजली की आपूर्ति:	220V 3P 50/60 हर्ट्ज	मशीन वजन:	530 किलोग्राम
मशीन आकार:	9009501600 मिमी	डेकोइलर वजन:	60 किलोग्राम
नियंत्रण प्रणाली:	1 सेट
प्रमुखता देना:	0.2-1.2mm CNC Spring Machine , 2 Axes Servo Motors CNC Spring Machine , 1000m/min Max Wire Speed CNC Spring Machine

High-Precision 0.2-1.2mm Computer Compression Spring Machine

Product Description

Model: HYD-212 Computer Compression Spring Machine

Technical Specification	Details
Model	HYD-212
Wire Size	0.2-1.2mm
Servo Motors	2 axes
Max Wire Feed	Unlimited
Max Outside Diameter	30mm
Wire Feed Speed	1000m/min
Control System	1SET

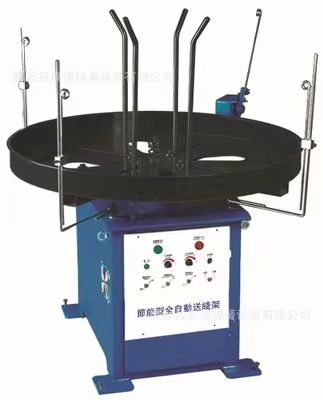

Decoiler	60KG
Wire Feed Motor	1.2KW
Cam Motor	1.0KW
Power Supply	220V3P 50/60HZ
Machine Dimension	530KG
Machine Size	9009501600mm

Application Scenario

Product Categories

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
