HYD 1-4mm CNC Coiling Spring Making Machine Metal & Metallurgy Machinery for Forming Wire

उत्पाद विवरण:

उत्पत्ति के प्लेस:	गुआंग्डोंग, चीन
ब्रांड नाम:	HYD

भुगतान & नौवहन नियमों:

न्यूनतम आदेश मात्रा:	1

संपर्क करें

विस्तृत उत्पाद विवरण

वज़न:	1800 किलोग्राम	वोल्टेज:	380 वी
शक्ति:	12 kW	तार का आकार:	1-4 मिमी
सर्वो मोटर्स:	3 अक्ष	मैक्स वायर स्पीड:	110 मीटर/मिनट
कैम क्रांति की गति:	0-60 आरपीएम	घेरे के बाहर:	अधिकतम 60 मिमी
तार फ़ीड रोलर:	4 जोड़े	अधिकतम त्रुटि:	± 0.10 ~ ± 359.90
वायर फीड मोटर:	5.5 किलोवाट	कैम मोटर:	5.5 किलोवाट
कोर अक्ष मोटर:	1.0 किलोवाट	मशीन आयाम:	L2600W1650H2000 मिमी
मशीन वजन:	2500 किलोग्राम
प्रमुखता देना:	CNC spring making machine 1-4mm , wire forming CNC spring machine , metal coiling spring machine CNC

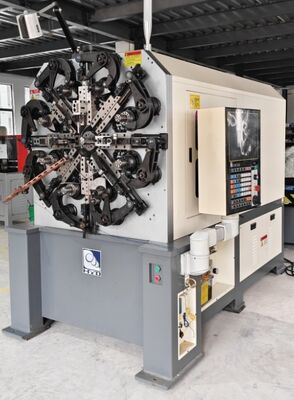

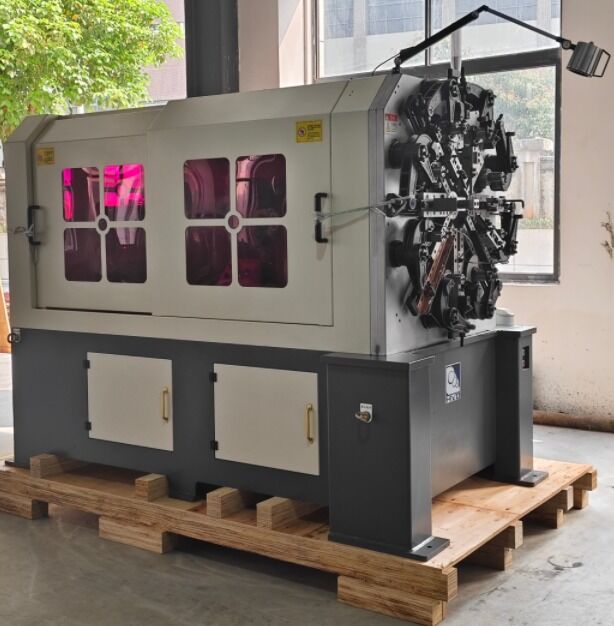

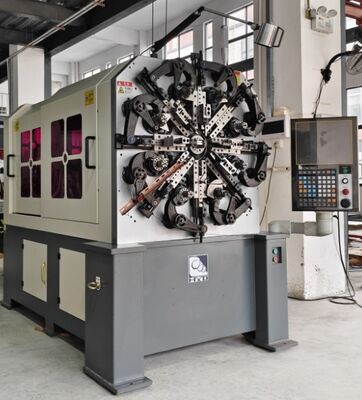

HYD 1-4mm CNC Coiling Spring Making Machine

The HYD-40T-5A Computer Spring Machine is a precision metal forming machine designed for efficient production of high-quality springs with wire sizes ranging from 1.0-4.0mm.

Technical Specifications

Model	HYD-40T-5A
Wire Size	1.0-4.0mm
Servo Motors	5 axes
Outside Diameter	Max 60mm
Wire Feed Roller	4 Pairs
Maximum Error	±0.10~±359.90
Wire Feed Speed	110m/min
Cam Revolution Speed	0~60 RPM
Control System	1SET

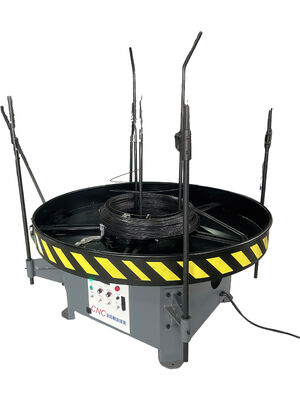

Decoiler	500KG
Wire Feed Motor	5.5KW
Cam Motor	5.5KW
Core Axis Motor	1.0KW
Motor Brand	Sanyo
Power Supply	380V±10%V50Hz
Machine Weight	2500KG
Machine Dimensions	L2600W1650H2000MM

Product Images

Frequently Asked Questions

Q1: Can you send me the catalogue?

A1: Sure. We have different kinds of machines catalog here. Or you can also tell me what products you need.

Q2: Do you accept OEM?

A2: We can produce any of your requested designs.

Q3: Can it be configured with something else?

A3: Yes, We can customize the machine according to your product requirements.

Q4: Are you a factory?

A4: Sure. We are factory direct sales; welcome to visit our factory.

Q5: What information will be helpful in getting an accurate quotation from us?

A5: The customer should provide the related drawings, pictures, industrial voltage, planned output, technical requirements, etc.

Q6: What is the power supply of the machine?

A6: The standard power supply in China is 380V, 3P, 50Hz. We also can customized as per requirement.

Q7: What is the payment term?

A7: The payment term is 30% deposit as PO confirmation, and 70% should be finished before the shipment. We also accept other payment terms.

Q8: What is the delivery time?

A8: Normally the manufacturing time of the machine is 30 days after receiving deposit. But it depends on machine model. Some machine production can be finished within 15 days.

Q9: What is the guarantee period of the machine?

A9: The guarantee period is one year from the date of B/L.

Q10: What is the MOQ?

A10: One set. We will make the machine suitable for you according to your needs.
